Panasonic Electronic Components

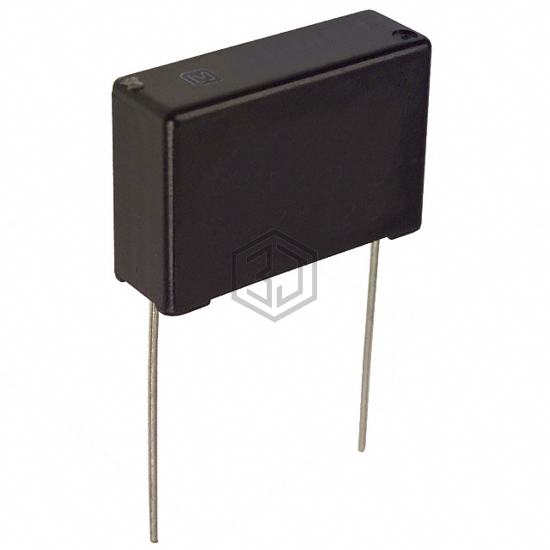

CAP FILM 0.22UF 20% 250VAC RAD
ECQ-U2A224MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 2,734
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.004" L x 0.335" W (25.50mm x 8.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A224MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC233629053 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 630VDC RAD | 96% | View |
| B32522C3224M289 | EPCOS - TDK Electronics | CAP FILM 0.22UF 20% 250VDC RAD | 92% | View |
| MKP18454221061 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 1KVDC AXIAL | 84% | View |
| MKP383422250JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 2.5KVDC RAD | 77% | View |
| SMR10224J100A01L4BULK | KEMET | CAP FILM 0.22UF 5% 100VDC RADIAL | 76% | View |
| BFC237228224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 100VDC RAD | 76% | View |
Submit your RFQ for ECQ-U2A224MV and get a quote within 24 hours.
