Panasonic Electronic Components
CAP FILM 0.22UF 20% 275VAC RAD

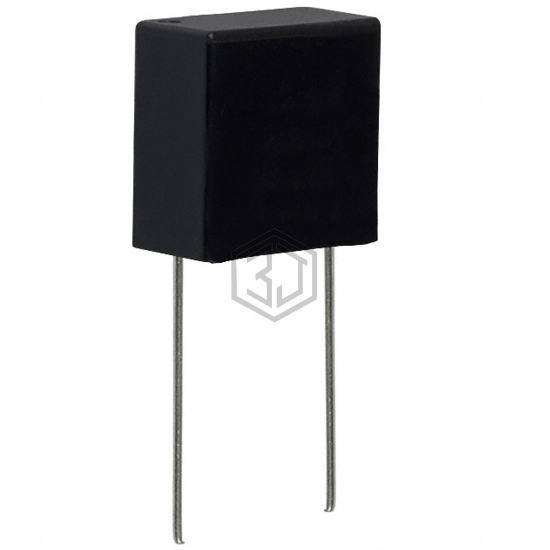

ECQ-U2A224MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 20% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 275V, package / case Radial.
In Stock: 3,969
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.354" W (17.50mm x 9.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A224MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PHE840MB6220KB12R17 | KEMET | CAP FILM 0.22UF 10% 760VDC RAD | 100% | View |
| F863BK224K310Z | KEMET | CAP FILM 0.22UF 10% 310VAC RAD | 98% | View |
| B32643B4224J000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 5% 400VDC RADIAL | 98% | View |
| MKP383422100JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 1KVDC RADIAL | 96% | View |
| B32653A4224K289 | EPCOS - TDK Electronics | CAP FILM 0.22UF 10% 400VDC RAD | 94% | View |
| MKT1813422254 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 250VDC AXIAL | 90% | View |
Submit your RFQ for ECQ-U2A224MG and get a quote within 24 hours.
