Panasonic Electronic Components

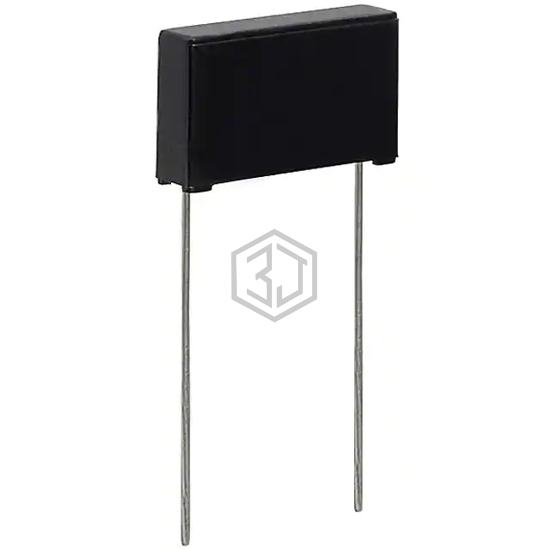

CAP FILM 0.022UF 20% 250VAC RAD
ECQ-U2A223MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.022UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 7,546
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.022 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.177" W (17.50mm x 4.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A223MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 69796-22 | Iskra | KNB2520 U022 20% 250V L6 R15 | 100% | View |
| MKP1841322635W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 630VDC RAD | 100% | View |
| 72842-22 | Iskra | KNB1560 U022 20% 275V L25 R15 | 98% | View |
| ECQ-E4223JF | Panasonic Electronic Components | CAP FILM 0.022UF 5% 400VDC RAD | 96% | View |
| B32912A3223K189 | EPCOS - TDK Electronics | CAP FILM 0.022UF 10% 760VDC RAD | 95% | View |
| B32529C0223J000 | EPCOS - TDK Electronics | CAP FILM 0.022UF 5% 63VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-U2A223MV and get a quote within 24 hours.
