Panasonic Electronic Components
CAP FILM 0.018UF 20% 250VAC RAD

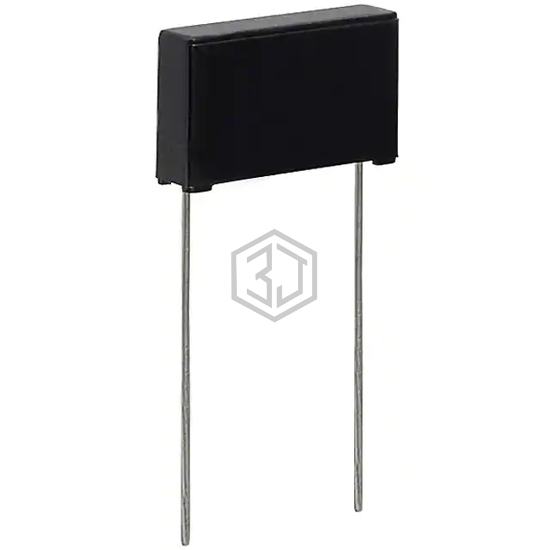

ECQ-U2A183MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.018UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 8,264
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.018 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.177" W (17.50mm x 4.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A183MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E6183KFB | Panasonic Electronic Components | CAP FILM 0.018UF 10% 630VDC RAD | 100% | View |
| BFC236856183 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 400VDC RAD | 98% | View |
| BFC237524183 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 1KVDC RADIAL | 92% | View |
| BFC238342183 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 1.4KVDC RAD | 88% | View |
| MKP383318250JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 2.5KVDC RAD | 77% | View |
| MKP383318250JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 2.5KVDC RAD | 77% | View |
Submit your RFQ for ECQ-U2A183MV and get a quote within 24 hours.
