Panasonic Electronic Components

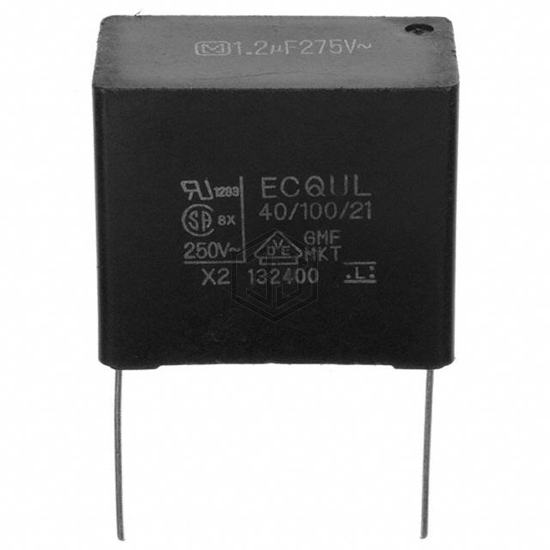

CAP FILM 1.2UF 20% 275VAC RADIAL
ECQ-U2A125ML is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1.2UF 20% 275VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 275V, package / case Radial.
In Stock: 3,689
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1.2 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.650" W (30.50mm x 16.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A125ML is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC233912125 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 10% 630VDC RADIAL | 98% | View |
| F339X251230KKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 10% 630VDC RADIAL | 98% | View |
| MKP383512100JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1KVDC RADIAL | 96% | View |
| MKP385E51263KKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 10% 630VDC RAD | 96% | View |
| MKP385512025JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 250VDC RADIAL | 90% | View |
| B32656A7125K000 | EPCOS - TDK Electronics | CAP FILM 1.2UF 10% 1.25KVDC RAD | 89% | View |
Submit your RFQ for ECQ-U2A125ML and get a quote within 24 hours.
