Panasonic Electronic Components

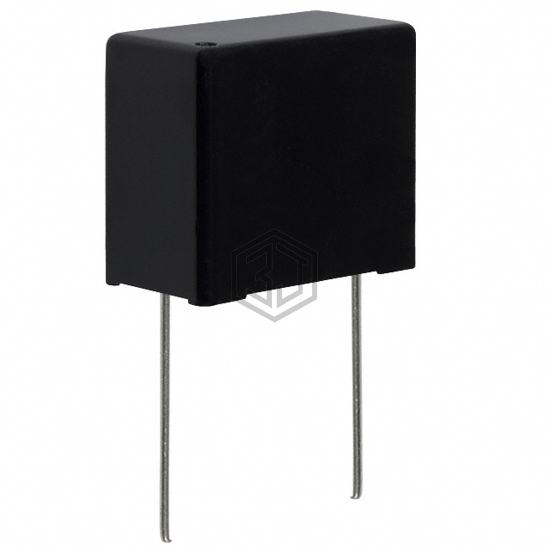

CAP FILM 1UF 20% 250VAC RADIAL
ECQ-U2A105MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1UF 20% 250VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 2,948
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.650" W (30.50mm x 16.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A105MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R46KN4100JPN2M | KEMET | CAP FILM 1UF 20% 560VDC RADIAL | 98% | View |
| 12453-06 | Iskra | KNB1560 1U 10% 275V L3 R22.5 | 98% | View |
| BFC233924105 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 96% | View |
| F339X251030KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 630VDC RADIAL | 96% | View |
| MKT1820510255 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 250VDC RADIAL | 92% | View |
| MKP1845510165 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 160VDC AXIAL | 84% | View |
Submit your RFQ for ECQ-U2A105MV and get a quote within 24 hours.
