Panasonic Electronic Components

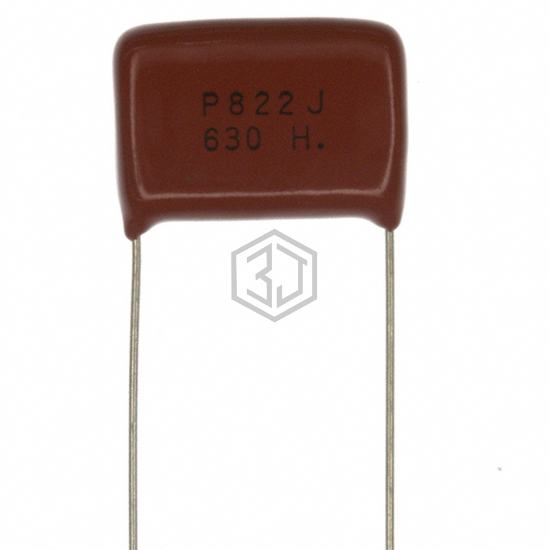

CAP FILM 8200PF 5% 630VDC RADIAL
ECQ-P6822JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8200PF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,672
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.236" W (19.50mm x 6.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6822JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC236859822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 400VDC RADIAL | 92% | View |
| BFC233868172 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 1KVDC RADIAL | 92% | View |
| R82MC1820SH50J | KEMET | 8200 400V | 92% | View |
| BFC237048822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 250VDC RAD | 84% | View |
| MKP383282200JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 2KVDC RADIAL | 79% | View |
| B32529C0822J000 | EPCOS - TDK Electronics | CAP FILM 8200PF 5% 63VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P6822JU and get a quote within 24 hours.
