Panasonic Electronic Components
CAP FILM 6800PF 5% 630VDC RADIAL

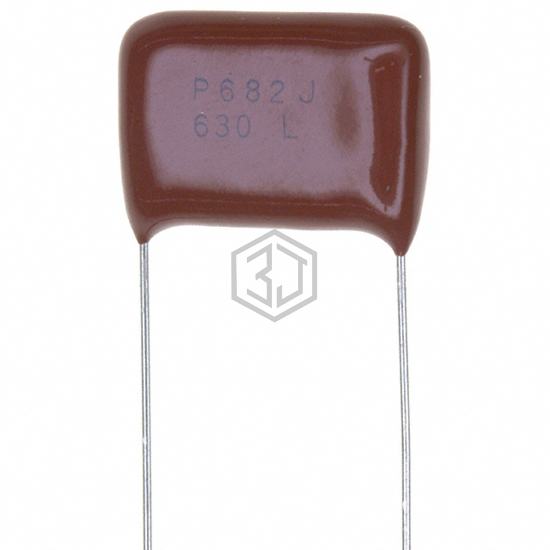

ECQ-P6682JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 6800PF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 2,076
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.217" W (19.50mm x 5.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6682JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC233918682 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 10% 630VDC RAD | 100% | View |
| 167682J630B-F | Cornell Dubilier Electronics (CDE) | CAP FILM 6800PF 5% 630VDC RADIAL | 100% | View |
| BFC237055682 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 10% 400VDC RAD | 92% | View |
| BFC236858682 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 10% 400VDC RAD | 92% | View |
| R82MC1680DQ50J | KEMET | CAP FILM 6800PF 5% 400VDC RADIAL | 92% | View |
| BFC237521682 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 3.5% 1KVDC RAD | 92% | View |
Submit your RFQ for ECQ-P6682JU and get a quote within 24 hours.
