Panasonic Electronic Components

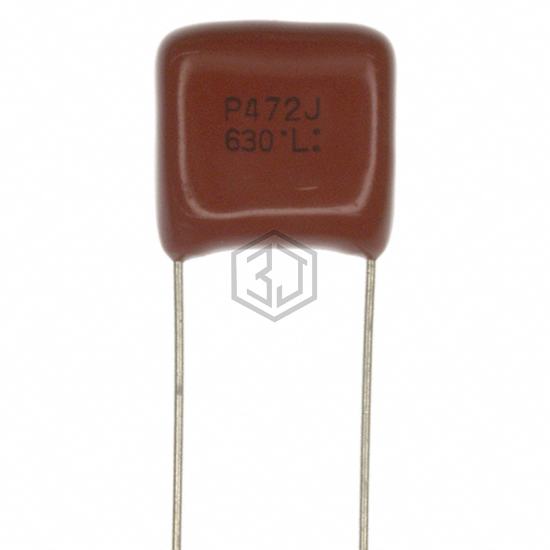

CAP FILM 4700PF 5% 630VDC RADIAL
ECQ-P6472JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4700PF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,155
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.571" L x 0.256" W (14.50mm x 6.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6472JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32620A6472K189 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 630VDC RAD | 100% | View |
| 160472K630C | Cornell Dubilier Electronics (CDE) | CAP FILM 4700PF 10% 630VDC RAD | 100% | View |
| BFC246959472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 400VDC RADIAL | 92% | View |
| R76MD1470JE30J | KEMET | CAP FILM AUTO POLYPROP RAD | 92% | View |
| MKT1817247255D | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 250VDC RAD | 84% | View |
| PPB2161470KEL | Nichicon | FILM CAP BOXED RADIAL | 83% | View |
