Panasonic Electronic Components

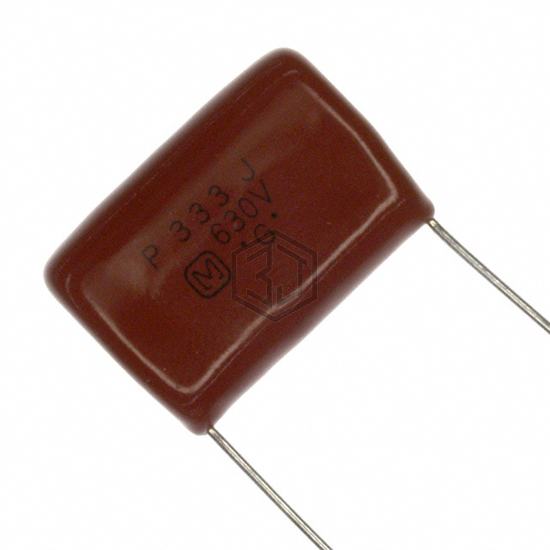

CAP FILM 0.033UF 5% 630VDC RAD
ECQ-P6333JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.033UF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,628
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.033 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.965" L x 0.315" W (24.50mm x 8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6333JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC233629035 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 100% | View |
| F339MX233331KDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 100% | View |
| R60PI23304030J | KEMET | CAP FILM AUTOMOTIVE | 100% | View |
| MPX20W2330FD00MSC9 | WIMA | MP 3-X2 0.033 F 250 VAC 6X14X19 | 100% | View |
| R49AI2330ZA01M | KEMET | 0,033U 310V | 96% | View |
| A50MF23302660J | KEMET | CAP FILM AXL | 92% | View |
Submit your RFQ for ECQ-P6333JU and get a quote within 24 hours.
