Panasonic Electronic Components

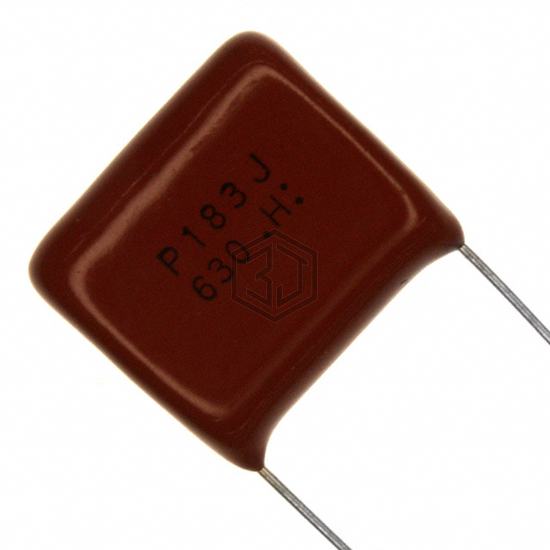

CAP FILM 0.018UF 5% 630VDC RAD
ECQ-P6183JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.018UF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,697
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.018 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.276" W (19.50mm x 7.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6183JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 890334023010CS | Würth Elektronik | CAP FILM 0.018UF 10% 310VAC RAD | 100% | View |
| R76QI218050H4J | KEMET | CAP FILM 0.018UF 5% 1KVDC RAD | 92% | View |
| F340Y231830MF02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 20% 1KVDC RAD | 92% | View |
| MKP383318040JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 400VDC RAD | 92% | View |
| MKP385E3181AKIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 10% 1.6KVDC RAD | 83% | View |
| R76UN218050H4J | KEMET | CAP FILM 0.018UF 5% 2KVDC RAD | 79% | View |
Submit your RFQ for ECQ-P6183JU and get a quote within 24 hours.
