Panasonic Electronic Components
CAP FILM 0.015UF 5% 630VDC RAD

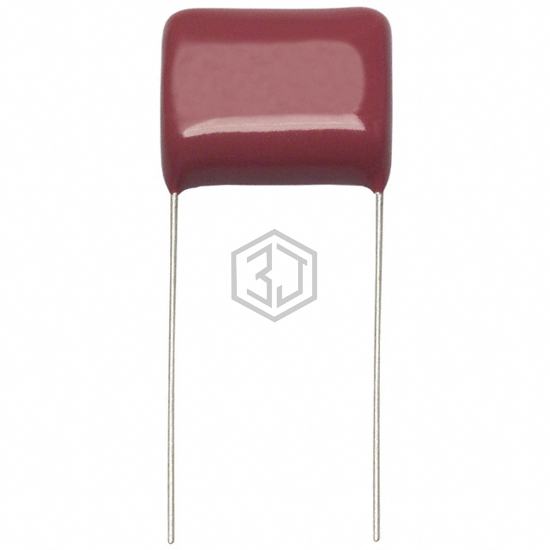

ECQ-P6153JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.015UF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 5,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.276" W (19.50mm x 7.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6153JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DPFF8S15J-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.015UF 5% 800VDC RAD | 96% | View |
| ECW-H8153RJV | Panasonic Electronic Components | CAP FILM .015UF 5% 800VDC RAD | 96% | View |
| MKP385315100JC02H0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 1KVDC RADIAL | 92% | View |
| F872BT153M480C | KEMET | CAP FILM POLYPROP RAD X1 | 92% | View |
| MKP385315160JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 1.6KVDC RAD | 83% | View |
| MKP385315160JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 1.6KVDC RAD | 83% | View |
