Panasonic Electronic Components

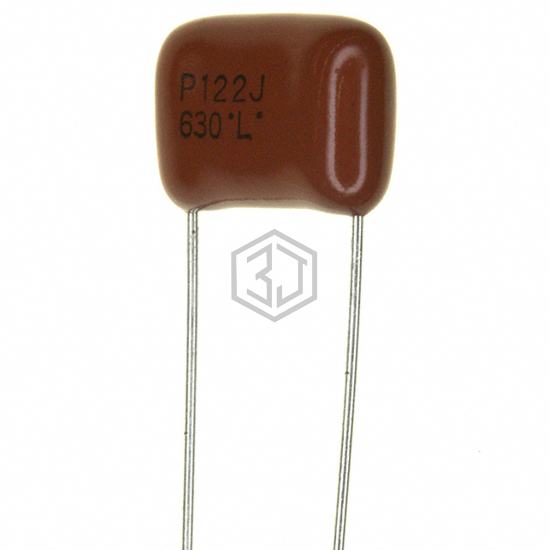

CAP FILM 1200PF 5% 630VDC RADIAL
ECQ-P6122JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1200PF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,935
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.571" L x 0.217" W (14.50mm x 5.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6122JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF122VB | Panasonic Electronic Components | CAP FILM 0.0012UF 10% 300VAC RAD | 100% | View |
| BFC246731122 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1200PF 5% 400VDC RADIAL | 92% | View |
| BFC236851122 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1200PF 10% 400VDC RAD | 92% | View |
| BFC237523122 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1200PF 3.5% 1KVDC RAD | 92% | View |
| BFC236955122 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1200PF 10% 400VDC RAD | 92% | View |
| BFC237535122 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1200PF 3.5% 1.6KVDC RAD | 83% | View |
Submit your RFQ for ECQ-P6122JU and get a quote within 24 hours.
