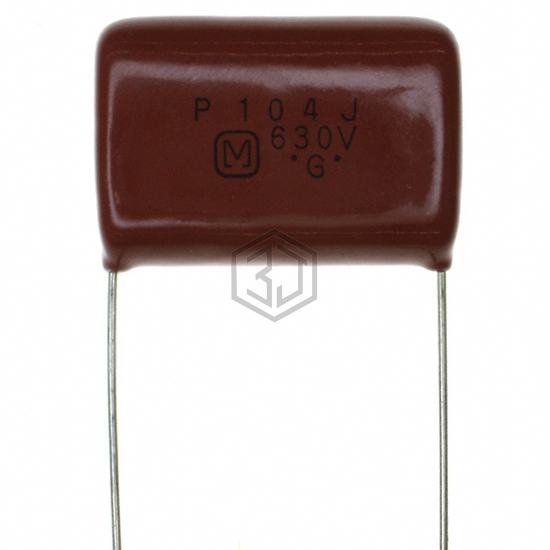

Panasonic Electronic Components
CAP FILM 0.1UF 5% 630VDC RADIAL
ECQ-P6104JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.1UF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 2,848
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.161" L x 0.453" W (29.50mm x 11.50mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6104JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPX20W3100FG00MSSD | WIMA | CAP FILM 0.1UF 20% 250VAC RAD | 100% | View |
| R71MI31005000M | KEMET | CAP FILM METAL RAD POLYPROP | 93% | View |
| R76QN31005030K | KEMET | CAP FILM 0.1UF 10% 1KVDC RADIAL | 92% | View |
| MKS4G031002E00KI00 | WIMA | CAP FILM 0.1UF 10% 400VDC RADIAL | 92% | View |
| MKS4G031002E00KF00 | WIMA | CAP FILM 0.1UF 10% 400VDC RADIAL | 92% | View |
| BFC236849104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 250VDC RADIAL | 84% | View |
Submit your RFQ for ECQ-P6104JU and get a quote within 24 hours.
