Panasonic Electronic Components
CAP FILM 10000PF 5% 630VDC RAD

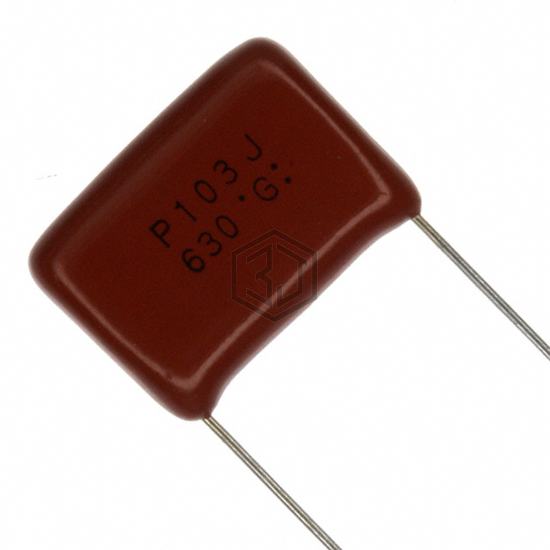

ECQ-P6103JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10000PF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 6,889
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.236" W (19.50mm x 6.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P6103JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R463F210050N0K | KEMET | CAP FILM 10000PF 10% 630VDC RAD | 100% | View |
| B32521N8103M000 | EPCOS - TDK Electronics | CAP FILM 10000PF 20% 630VDC RAD | 100% | View |
| F461KG103K630C | KEMET | CAP FILM POLYPROP RAD | 100% | View |
| F339X131033MFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 20% 800VDC RAD | 96% | View |
| F461KF103M400C | KEMET | .010UF 400V | 92% | View |
| 168103K250A-F | Cornell Dubilier Electronics (CDE) | CAP FILM 10000PF 10% 250VDC RAD | 84% | View |
