Panasonic Electronic Components
CAP FILM 0.056UF 5% 400VDC RAD

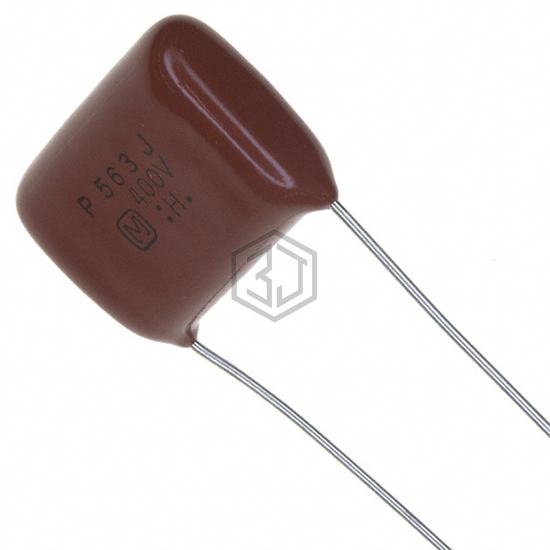

ECQ-P4563JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.056UF 5% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 5,653
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.965" L x 0.276" W (24.50mm x 7.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4563JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKY22W25604F00KSSD | WIMA | CAP FILM 0.056UF 10% 300VAC RAD | 100% | View |
| F1772SX235631KFIB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 630VDC RAD | 92% | View |
| MKP385356085JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 850VDC RAD | 87% | View |
| ECW-H10563HVB | Panasonic Electronic Components | CAP FILM 0.056UF 3% 1KVDC RADIAL | 84% | View |
| MKP385356100JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 1KVDC RADIAL | 84% | View |
| MKP385356100JF02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 1KVDC RADIAL | 84% | View |
