Panasonic Electronic Components

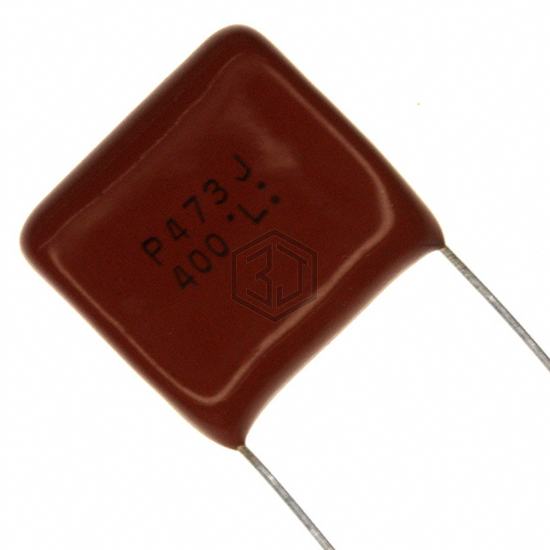

CAP FILM 0.047UF 5% 400VDC RAD
ECQ-P4473JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 5% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,472
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.315" W (19.50mm x 8.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4473JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32522C6473J | EPCOS - TDK Electronics | CAP FILM 0.047UF 5% 400VDC RAD | 100% | View |
| 473MPW630K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.047UF 630VDC AXIAL | 92% | View |
| BFC233823473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 630VDC RAD | 92% | View |
| F339X134748KFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 1KVDC RAD | 84% | View |
| R76TN24704040J | KEMET | CAP FILM 0.047UF 5% 1.6KVDC RAD | 75% | View |
| PPB2162470KGL | Nichicon | FILM CAP BOXED RADIAL | 75% | View |
Submit your RFQ for ECQ-P4473JU and get a quote within 24 hours.
