Panasonic Electronic Components

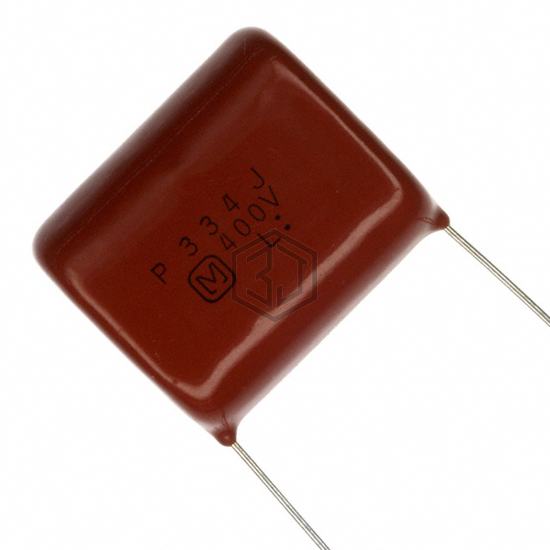

CAP FILM 0.33UF 5% 400VDC RADIAL
ECQ-P4334JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.33UF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 5,545
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.33 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.161" L x 0.591" W (29.50mm x 15.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4334JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R46KN333050M1W | KEMET | 0,33 U 275V | 94% | View |
| 20634-06 | Iskra | KNB1560 U33 10% 275V L4 R15 CD M | 92% | View |
| ECQ-E2334JBB | Panasonic Electronic Components | CAP FILM 0.33UF 5% 250VDC RADIAL | 92% | View |
| F340Y243330KIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 10% 1KVDC RAD | 84% | View |
| 334MWR100K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 10% 100VDC AXIAL | 75% | View |
| R76TR333050H3J | KEMET | CAP FILM 0.33UF 5% 1.6KVDC RAD | 75% | View |
Submit your RFQ for ECQ-P4334JU and get a quote within 24 hours.
