Panasonic Electronic Components

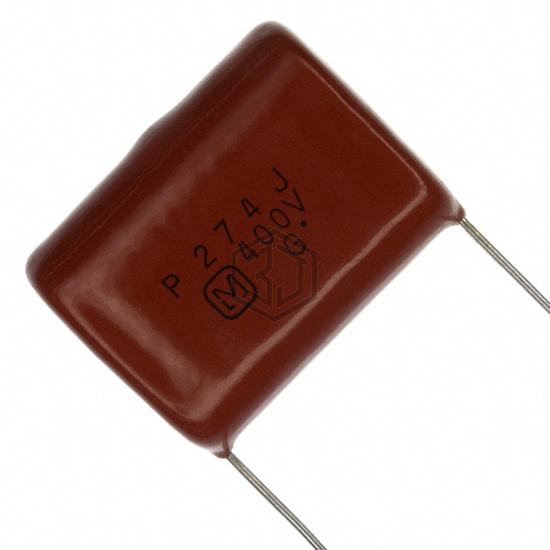

CAP FILM 0.27UF 5% 400VDC RADIAL
ECQ-P4274JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.27UF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 6,084
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.27 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.161" L x 0.512" W (29.50mm x 13.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4274JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E4274JF | Panasonic Electronic Components | CAP FILM 0.27UF 5% 400VDC RADIAL | 100% | View |
| BFC246829274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 400VDC RADIAL | 100% | View |
| MKP385427040JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 400VDC RADIAL | 100% | View |
| BFC247964274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 630VDC RADIAL | 92% | View |
| MKP385427100JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 1KVDC RADIAL | 84% | View |
| MKP385E42712KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 1.25KVDC RAD | 80% | View |
Submit your RFQ for ECQ-P4274JU and get a quote within 24 hours.
