Panasonic Electronic Components
CAP FILM 0.015UF 5% 400VDC RAD

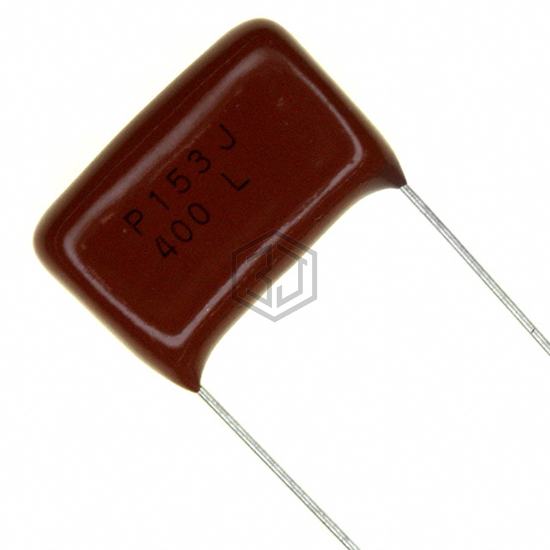

ECQ-P4153JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.015UF 5% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 8,823
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.768" L x 0.236" W (19.50mm x 6.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4153JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC246951153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 400VDC RAD | 100% | View |
| PVC6115 | Cornell Dubilier Electronics (CDE) | CAP FILM 0.015UF 10% 600VDC RAD | 93% | View |
| MKS4J021502C00JSSD | WIMA | CAP FILM 0.015UF 5% 630VDC RAD | 92% | View |
| F861AL153M310C | KEMET | CAP FILM POLYPROP RAD X2 | 92% | View |
| MKP385315160JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 1.6KVDC RAD | 75% | View |
| ECW-HA3C153HB | Panasonic Electronic Components | CAP FILM 0.015UF 3% 1.6KVDC RAD | 75% | View |
