Panasonic Electronic Components
CAP FILM 0.12UF 5% 400VDC RADIAL

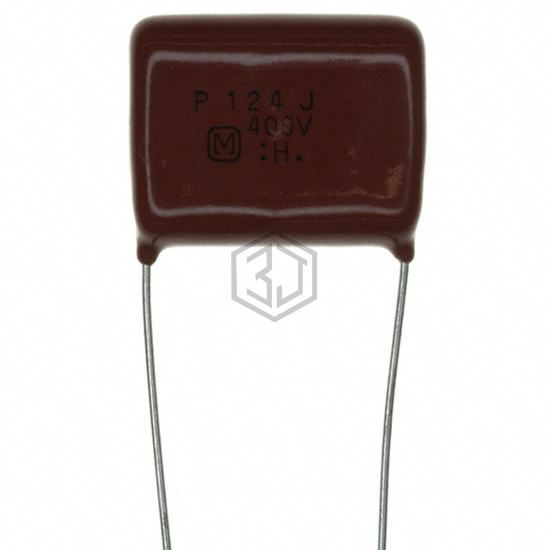

ECQ-P4124JU is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.12UF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 8,050
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.12 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.965" L x 0.394" W (24.50mm x 10.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-P4124JU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R75MI3120JE30J | KEMET | CAP FILM AUTO POLYPROP RAD | 100% | View |
| BFC236848124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 10% 250VDC RAD | 92% | View |
| BFC2373EE124MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 10% 250VDC RAD | 92% | View |
| MKP385E41285JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 850VDC RAD | 87% | View |
| MKP385412016JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 160VDC RADIAL | 84% | View |
| MKP385412100JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 1KVDC RADIAL | 84% | View |
Submit your RFQ for ECQ-P4124JU and get a quote within 24 hours.
