Panasonic Electronic Components
CAP FILM 8200PF 2% 50VDC RADIAL

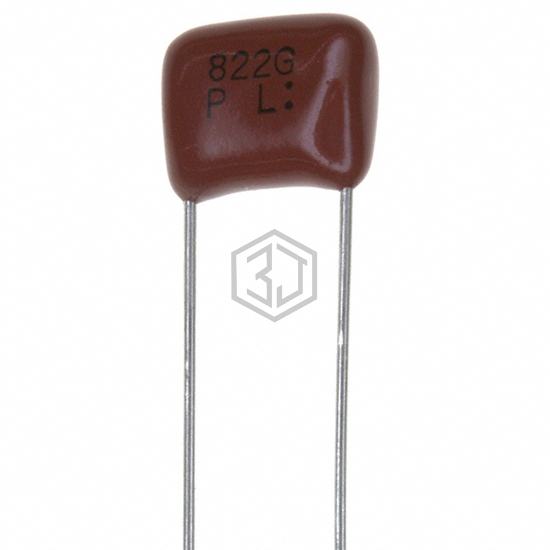

ECQ-P1H822GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8200PF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 5,191
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 pF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H822GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPX822K27AL100B-13X11X5 | Trigon Components | CMPX-X2 FILM CAP 8200PF 10% | 100% | View |
| BFC233868115 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 20% 1KVDC RADIAL | 71% | View |
| MKP383282250JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 2.5KVDC RAD | 71% | View |
| MKP385282100JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 1KVDC RADIAL | 71% | View |
| BFC236951822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 400VDC RAD | 71% | View |
| MKP385282063JC02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 630VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P1H822GZ and get a quote within 24 hours.
