Panasonic Electronic Components

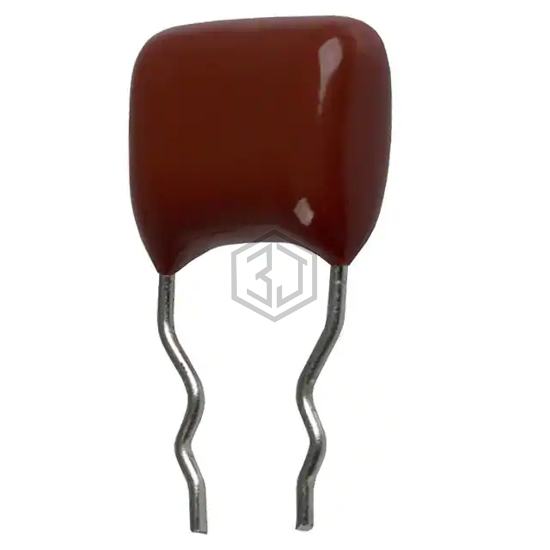

CAP FILM 7500PF 1% 50VDC RADIAL
ECQ-P1H752FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 7500PF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 4,759
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 7500 pF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.197" W (12.00mm x 5.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H752FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP383275040JC02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7500PF 5% 400VDC RADIAL | 71% | View |
| ECW-H10752RJV | Panasonic Electronic Components | CAP FILM 7500PF 5% 1KVDC RADIAL | 71% | View |
| BFC237534752 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7500PF 5% 1.6KVDC RAD | 71% | View |
| BFC237517752 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7500PF 3.5% 630VDC RAD | 71% | View |
| MKP385275085JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7500PF 5% 850VDC RADIAL | 71% | View |
| MKP383275160JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7500PF 5% 1.6KVDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H752FZW and get a quote within 24 hours.
