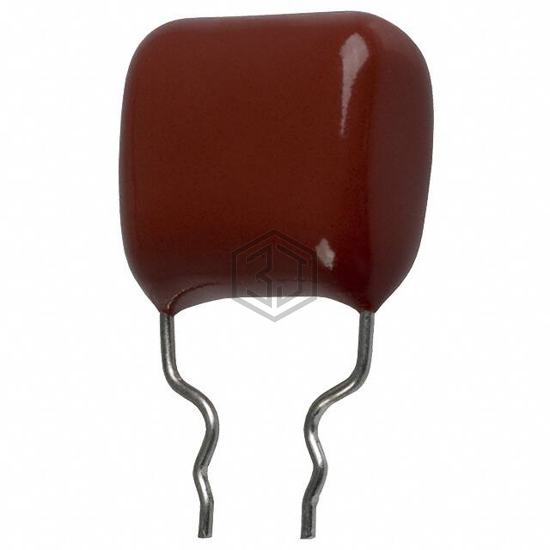

Panasonic Electronic Components
CAP FILM 0.068UF 1% 50VDC RADIAL
ECQ-P1H683FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 2,742
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.068 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.571" L x 0.276" W (14.50mm x 7.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H683FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32520C6683J189 | EPCOS - TDK Electronics | CAP FILM 0.068UF 5% 400VDC RAD | 71% | View |
| F339X136848MFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 20% 1KVDC RAD | 71% | View |
| FKP1J026806B00JSC9 | WIMA | CAP FILM 0.068UF 5% 630VDC RAD | 71% | View |
| ECW-F6683JL | Panasonic Electronic Components | CAP FILM 0.068UF 5% 630VDC RAD | 71% | View |
| MKT1818368254W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 250VDC RAD | 71% | View |
| 683PPA302K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.068UF 10% 3KVDC AXIAL | 71% | View |
