Panasonic Electronic Components

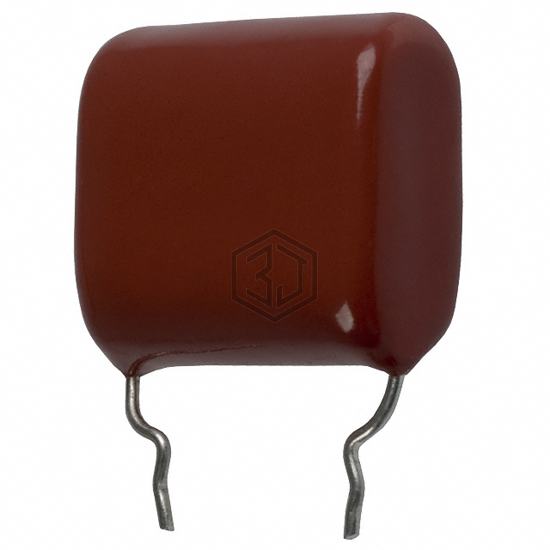

CAP FILM 0.47UF 1% 50VDC RADIAL
ECQ-P1H474FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.47UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 9,783
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.886" L x 0.472" W (22.50mm x 12.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H474FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPPAC310V474K15S7 | SURGE | CAP FILM 0.47UF 310VAC RADIAL | 100% | View |
| MKP1839447164R | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 160VDC AXIAL | 79% | View |
| ECW-FE2J474JA | Panasonic Electronic Components | CAP FILM 0.47UF 5% 630VDC RADIAL | 71% | View |
| 474PHC600K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.47UF 10% 600VDC AXIAL | 71% | View |
| 17531-06 | Iskra | KNB1560 U47 20% 275V L30 R15 B9. | 71% | View |
| MKP385447040JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 400VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P1H474FZW and get a quote within 24 hours.
