Panasonic Electronic Components

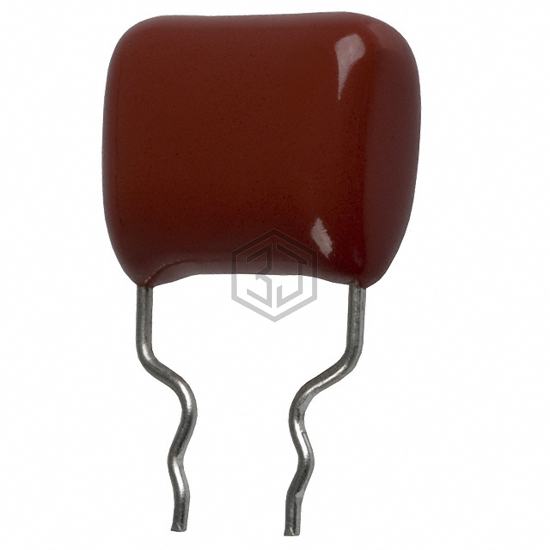

CAP FILM 0.047UF 1% 50VDC RADIAL
ECQ-P1H473FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 6,831
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.047 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.571" L x 0.236" W (14.50mm x 6.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H473FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C1473K189 | EPCOS - TDK Electronics | CAP FILM 0.047UF 10% 100VDC RAD | 88% | View |
| BFC236727473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 100VDC RAD | 88% | View |
| PHE426KA5470JR05 | KEMET | CAP FILM 0.047UF 5% 400VDC RAD | 71% | View |
| R46KF247050N0K | KEMET | CAP FILM 0.047UF 10% 560VDC RAD | 71% | View |
| MKP385E3472AKIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 2KVDC RAD | 71% | View |
| MKP385347200JKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 2KVDC RADIAL | 71% | View |
