Panasonic Electronic Components

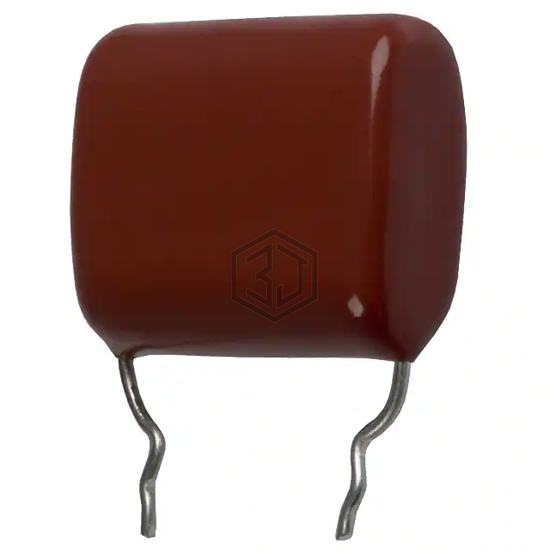

CAP FILM 0.43UF 1% 50VDC RADIAL
ECQ-P1H434FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.43UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 1,514
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.43 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.886" L x 0.453" W (22.50mm x 11.50mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H434FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-F4434HL | Panasonic Electronic Components | CAP FILM 0.43UF 3% 400VDC RADIAL | 71% | View |
| MKP1841443254 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.43UF 5% 250VDC RADIAL | 71% | View |
| MKP385443040JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.43UF 5% 400VDC RADIAL | 71% | View |
| MKP383443200JPP5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.43UF 5% 2KVDC RADIAL | 71% | View |
| BFC238311434 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.43UF 5% 400VDC RADIAL | 71% | View |
| BFC238304434 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.43UF 5% 250VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P1H434FZW and get a quote within 24 hours.
