Panasonic Electronic Components
CAP FILM 0.039UF 2% 50VDC RADIAL

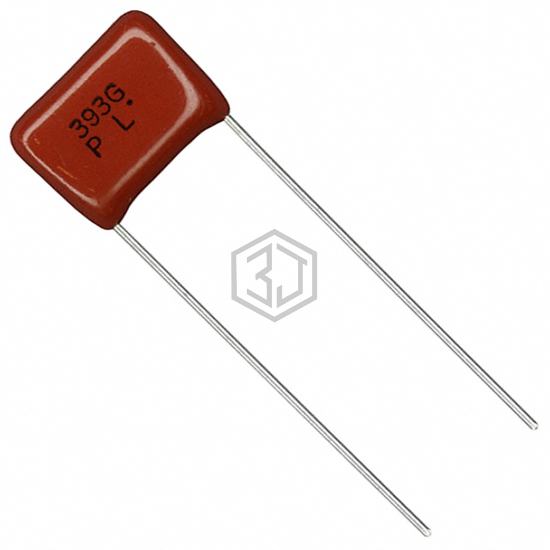

ECQ-P1H393GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.039UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 4,527
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.039 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.571" L x 0.217" W (14.50mm x 5.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H393GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2370EF393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 250VDC RAD | 71% | View |
| ECW-F6393HL | Panasonic Electronic Components | CAP FILM 0.039UF 3% 630VDC RAD | 71% | View |
| BFC237256393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 400VDC RAD | 71% | View |
| ECW-H12393HVB | Panasonic Electronic Components | CAP FILM 0.039UF 3% 1.25KVDC RAD | 71% | View |
| MKP385E3392BKKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 10% 2.5KVDC RAD | 71% | View |
| BFC236647393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 250VDC RAD | 71% | View |
