Panasonic Electronic Components
CAP FILM 3900PF 2% 50VDC RADIAL

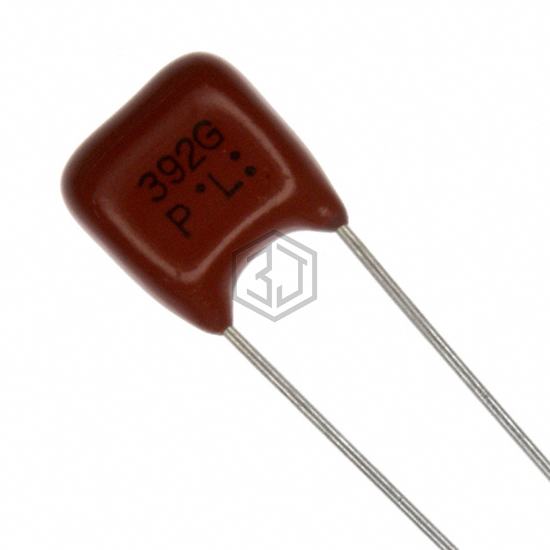

ECQ-P1H392GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3900PF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 5,943
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 pF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.335" L x 0.177" W (8.50mm x 4.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H392GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R82EC1390AA50J | KEMET | CAP FILM 3900PF 5% 100VDC RADIAL | 88% | View |
| 168392J100A-F | Cornell Dubilier Electronics (CDE) | CAP FILM 3900PF 5% 100VDC RADIAL | 88% | View |
| BFC233915392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 10% 630VDC RAD | 71% | View |
| BFC237059392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 400VDC RADIAL | 71% | View |
| MKP385239125JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 1.25KVDC RAD | 71% | View |
| MKP385239160JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 1.6KVDC RAD | 71% | View |
