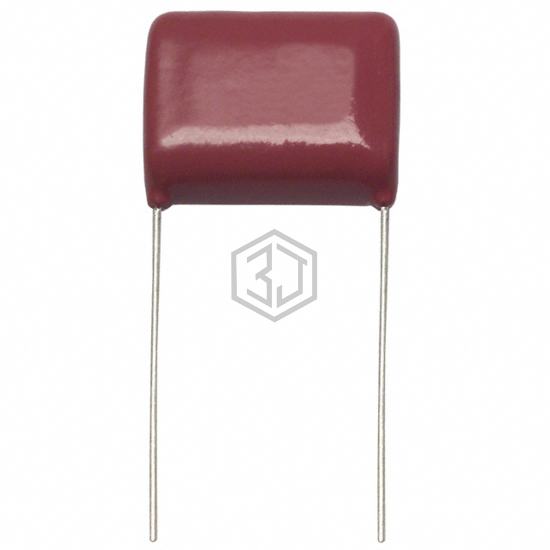

Panasonic Electronic Components
CAP FILM 0.33UF 2% 50VDC RADIAL
ECQ-P1H334GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.33UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 7,375
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.33 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.886" L x 0.394" W (22.50mm x 10.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H334GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C1334J189 | EPCOS - TDK Electronics | CAP FILM 0.33UF 5% 100VDC RADIAL | 88% | View |
| BFC237327334 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 10% 100VDC RAD | 88% | View |
| BFC237364334 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 630VDC RADIAL | 71% | View |
| 334K400CS6-FA | Paktron | CAPACITOR MLP 3.3UF 400V THRU-HO | 71% | View |
| QXK2G334JTPTZH | Nichicon | CAP FILM 0.33UF 5% 400VDC RAD | 71% | View |
| MKP385E43385KI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 10% 850VDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H334GZ and get a quote within 24 hours.
