Panasonic Electronic Components

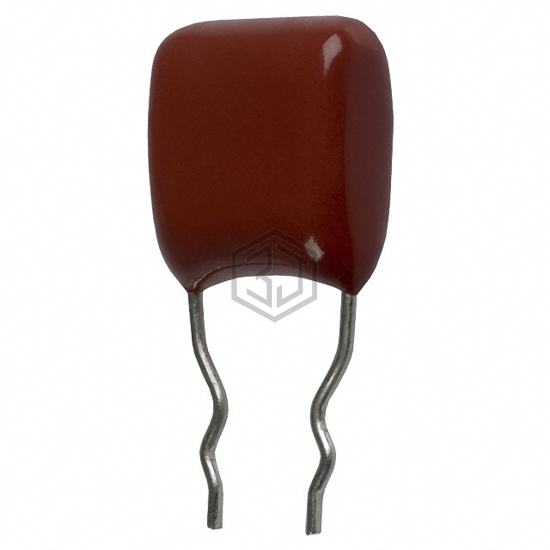

CAP FILM 0.033UF 1% 50VDC RADIAL
ECQ-P1H333FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.033UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 1,248
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.033 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.256" W (12.00mm x 6.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H333FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1837333014W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 160VDC RAD | 79% | View |
| BFC233922333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 20% 630VDC RAD | 71% | View |
| BFC233917333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 71% | View |
| MKP383333025JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 250VDC RAD | 71% | View |
| MKP1845333205 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 2KVDC AXIAL | 71% | View |
| MKS2G023301E00MI00 | WIMA | CAP FILM 0.033UF 20% 400VDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H333FZW and get a quote within 24 hours.
