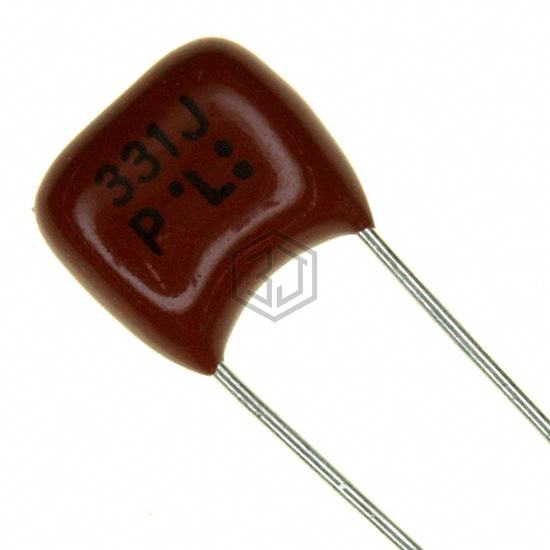

Panasonic Electronic Components
CAP FILM 330PF 5% 50VDC RADIAL
ECQ-P1H331JZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 330PF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 8,848
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.335" L x 0.177" W (8.50mm x 4.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H331JZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FKP0C003300B00HSSD | WIMA | FKP 02 330 pF 63 VDC 2.5% Standa | 96% | View |
| KP1830133015W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 330PF 10% 100VDC RADIAL | 88% | View |
| FKS2D003301A00JSSD | WIMA | FKS 2 330 pF 100 VDC 5% Standard | 88% | View |
| MKP1839133631G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 330PF 1% 630VDC AXIAL | 71% | View |
| BFC237541331 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 330PF 3.5% 2KVDC RADIAL | 71% | View |
| PHE450HK3330JR05 | KEMET | CAP FILM RAD | 71% | View |
Submit your RFQ for ECQ-P1H331JZ and get a quote within 24 hours.
