Panasonic Electronic Components

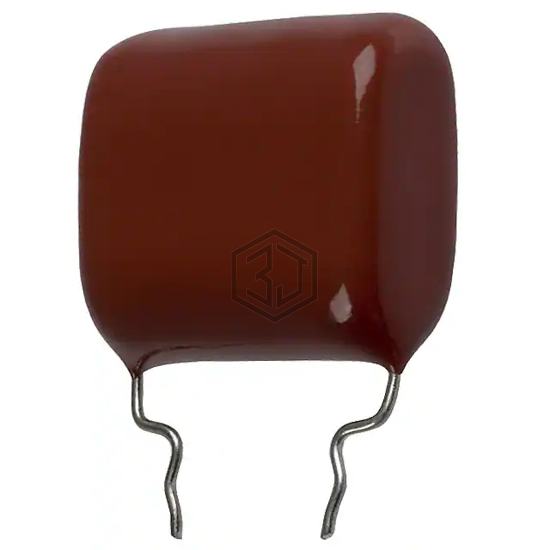

CAP FILM 0.27UF 1% 50VDC RADIAL
ECQ-P1H274FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.27UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 7,751
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.27 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.787" L x 0.413" W (20.00mm x 10.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H274FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC237112274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 63VDC RADIAL | 96% | View |
| BFC247022274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 100VDC RADIAL | 88% | View |
| 160274K100D-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.27UF 10% 100VDC RAD | 88% | View |
| MKP385427016JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 160VDC RADIAL | 79% | View |
| 930C2P27K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.27UF 10% 250VDC AXIAL | 71% | View |
| F340Y242730KKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 1KVDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H274FZW and get a quote within 24 hours.
