Panasonic Electronic Components

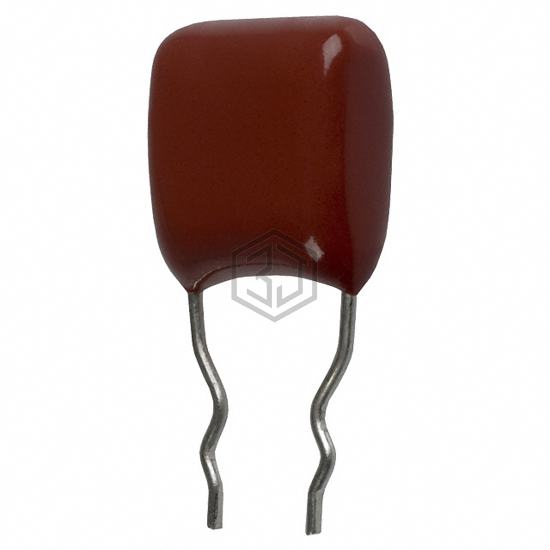

CAP FILM 0.027UF 2% 50VDC RADIAL
ECQ-P1H273GZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.027UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 8,930
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.027 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H273GZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-B1H273JF3 | Panasonic Electronic Components | CAP FILM 0.027UF 5% 50VDC RADIAL | 100% | View |
| BFC246756273 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 400VDC RAD | 71% | View |
| ECQ-E2273KFW | Panasonic Electronic Components | CAP FILM 0.027UF 10% 250VDC RAD | 71% | View |
| BFC237059273 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 400VDC RAD | 71% | View |
| BFC246755273 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 10% 400VDC RAD | 71% | View |
| MKP385327250JKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 2.5KVDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H273GZW and get a quote within 24 hours.
