Panasonic Electronic Components

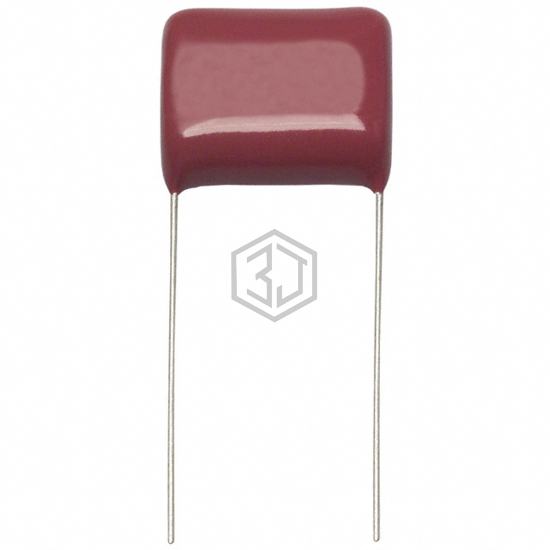

CAP FILM 0.22UF 2% 50VDC RADIAL
ECQ-P1H224GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 1,853
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.787" L x 0.374" W (20.00mm x 9.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H224GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F861BG224K310A | KEMET | CAP FILM 0.22UF 10% 310VAC RAD | 100% | View |
| MPX224K305E | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.22UF 10% 305VAC RAD | 100% | View |
| F339X142233KIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 800VDC RAD | 71% | View |
| ECW-FD2W224JB | Panasonic Electronic Components | CAP FILM 0.22UF 5% 450VDC RADIAL | 71% | View |
| MKT1813422635 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 630VDC AXIAL | 71% | View |
| MKP385E42285JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 850VDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H224GZ and get a quote within 24 hours.
