Panasonic Electronic Components

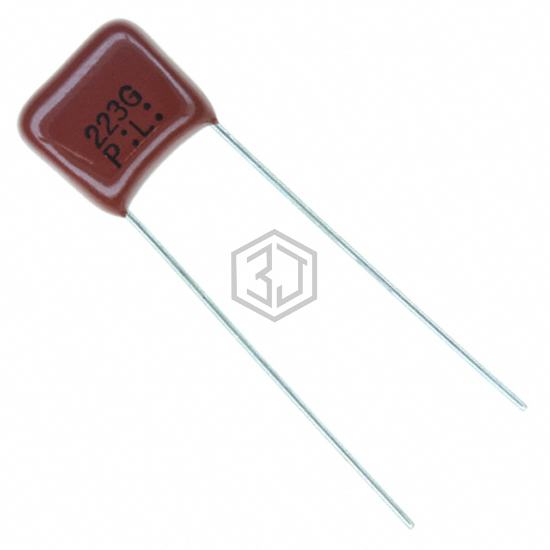

CAP FILM 0.022UF 2% 50VDC RADIAL
ECQ-P1H223GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.022UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 8,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.022 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H223GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C1223K000 | EPCOS - TDK Electronics | CAP FILM 0.022UF 10% 100VDC RAD | 88% | View |
| B32653A1223J000 | EPCOS - TDK Electronics | CAP FILM 0.022UF 5% 1.6KVDC RAD | 71% | View |
| MKT1820322634W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 71% | View |
| 76750-22 | Iskra | KNB1530 U022 10% 300V L4 R15 | 71% | View |
| 13405-06 | Iskra | KNB1560 U022 20% 275V L4 R7.5 | 71% | View |
| MKP1841322254 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 250VDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H223GZ and get a quote within 24 hours.
