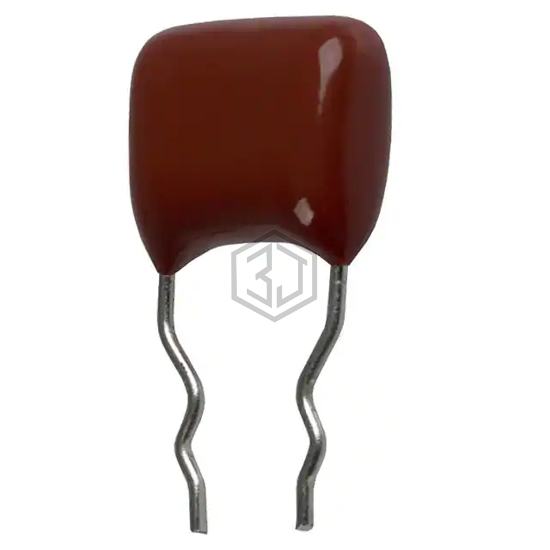

Panasonic Electronic Components
CAP FILM 0.016UF 1% 50VDC RADIAL
ECQ-P1H163FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.016UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 1,653
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.016 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H163FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC241941603 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 2% 400VDC RAD | 71% | View |
| BFC241841603 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 2% 250VDC RAD | 71% | View |
| MKP383316063JD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 5% 630VDC RAD | 71% | View |
| MKP385316160JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 5% 1.6KVDC RAD | 71% | View |
| MKP385316085JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 5% 850VDC RAD | 71% | View |
| BFC247990205 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.016UF 5% 630VDC RAD | 71% | View |
