Panasonic Electronic Components

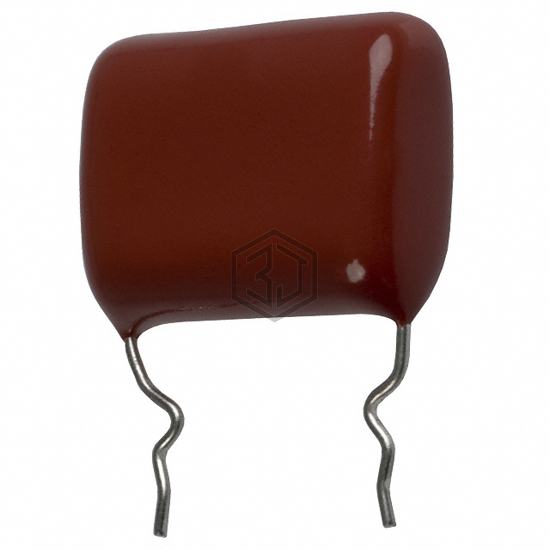

CAP FILM 0.15UF 1% 50VDC RADIAL
ECQ-P1H154FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.15UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 2,564
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.15 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.787" L x 0.315" W (20.00mm x 8.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H154FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C0154J189 | EPCOS - TDK Electronics | CAP FILM 0.15UF 5% 63VDC RADIAL | 96% | View |
| BFC247932154 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 160VDC RADIAL | 79% | View |
| 72365-22 | Iskra | KNB1560 U15 10% 275V L25 R15 | 71% | View |
| BFC233629044 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 20% 630VDC RAD | 71% | View |
| BFC233848027 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 10% 800VDC RAD | 71% | View |
| MKP385415085JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 850VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P1H154FZW and get a quote within 24 hours.
