Panasonic Electronic Components

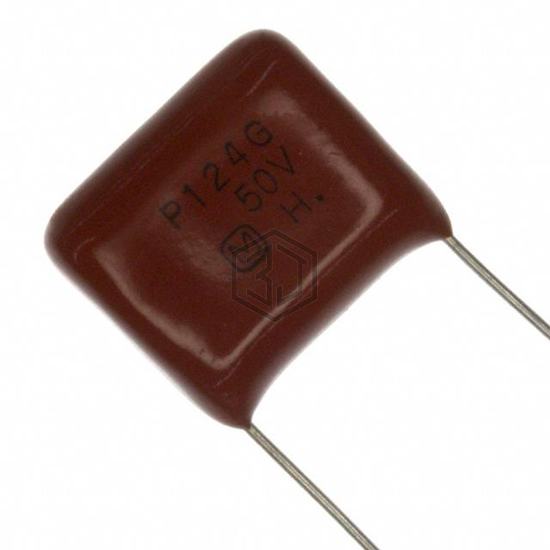

CAP FILM 0.12UF 2% 50VDC RADIAL
ECQ-P1H124GZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.12UF 2% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 2,579
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.12 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.669" L x 0.335" W (17.00mm x 8.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H124GZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPX124K27AL150B-18X12X6 | Trigon Components | CMPX-X2 FILM CAP 0.12UF 10% | 100% | View |
| BFC237085124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 10% 100VDC RAD | 88% | View |
| BFC246866124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 400VDC RADIAL | 71% | View |
| BFC237242124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 250VDC RADIAL | 71% | View |
| 150124K250DB | Cornell Dubilier Electronics (CDE) | CAP FILM 0.12UF 10% 250VDC AXIAL | 71% | View |
| BFC238313124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 400VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-P1H124GZ and get a quote within 24 hours.
