Panasonic Electronic Components

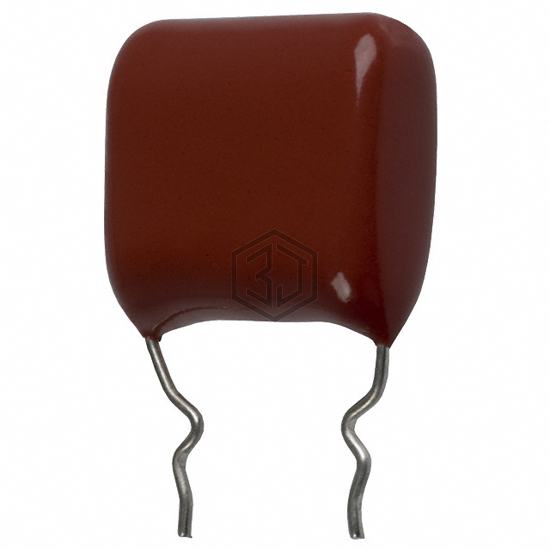

CAP FILM 0.12UF 1% 50VDC RADIAL
ECQ-P1H124FZW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.12UF 1% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 5,372
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.12 µF |
| Tolerance | ±1% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.669" L x 0.335" W (17.00mm x 8.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECQ-P1H124FZW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QYX1H124JTP | Nichicon | CAP FILM 0.12UF 5% 50VDC RADIAL | 100% | View |
| MKP385412016JC02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 160VDC RADIAL | 79% | View |
| MKP385412016JCI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 160VDC RADIAL | 79% | View |
| BFC233860124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 20% 1KVDC RADIAL | 71% | View |
| B32652A4124J000 | EPCOS - TDK Electronics | CAP FILM 0.12UF 5% 400VDC RADIAL | 71% | View |
| BFC2370EE124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 10% 250VDC RAD | 71% | View |
Submit your RFQ for ECQ-P1H124FZW and get a quote within 24 hours.
