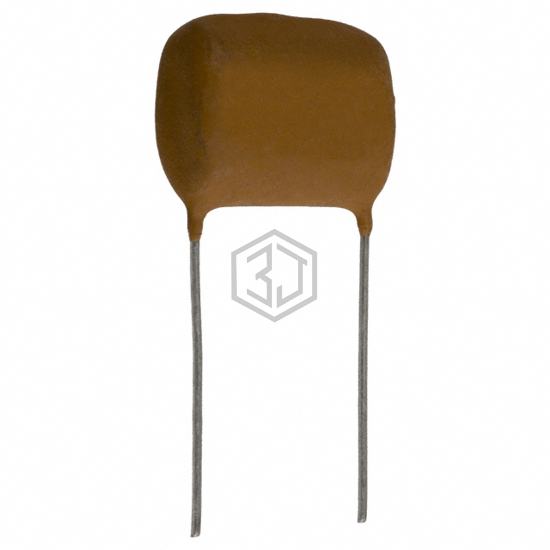

Panasonic Electronic Components
CAP FILM 0.082UF 10% 400VDC RAD
ECQ-M4823KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.082UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 400V, package / case Radial.
In Stock: 7,884
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.082 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.374" W (24.00mm x 9.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.709" (18.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-M4823KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E4823JFB | Panasonic Electronic Components | CAP FILM 0.082UF 5% 400VDC RAD | 100% | View |
| MKP385382040JC02H0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.082UF 5% 400VDC RAD | 100% | View |
| BFC238314823 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.082UF 5% 400VDC RAD | 100% | View |
| BFC247035823 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.082UF 10% 250VDC RAD | 92% | View |
| ECQ-E6823JFW | Panasonic Electronic Components | CAP FILM 0.082UF 5% 630VDC RAD | 92% | View |
| BFC237141823 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.082UF 10% 250VDC RAD | 92% | View |
Submit your RFQ for ECQ-M4823KZ and get a quote within 24 hours.
