Panasonic Electronic Components

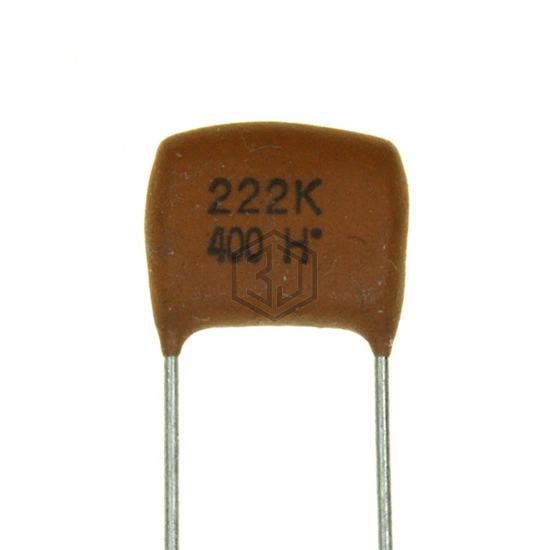

CAP FILM 2200PF 10% 400VDC RAD
ECQ-M4222KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2200PF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 400V, package / case Radial.
In Stock: 9,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.433" L x 0.256" W (11.00mm x 6.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.256" (6.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-M4222KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC236959222 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2200PF 5% 400VDC RADIAL | 100% | View |
| MKT1817222405G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2200PF 10% 400VDC RAD | 100% | View |
| 66417-22 | Iskra | KNB2520 2200P 20% 250V L4 R10 | 94% | View |
| BFC233623222 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2200PF 20% 630VDC RAD | 92% | View |
| B32620A0222K189 | EPCOS - TDK Electronics | CAP FILM 2200PF 10% 1KVDC RADIAL | 84% | View |
| FKP1T012205A00MSSD | WIMA | CAP FILM 2200PF 20% 1.6KVDC RAD | 75% | View |
Submit your RFQ for ECQ-M4222KZ and get a quote within 24 hours.
