Panasonic Electronic Components

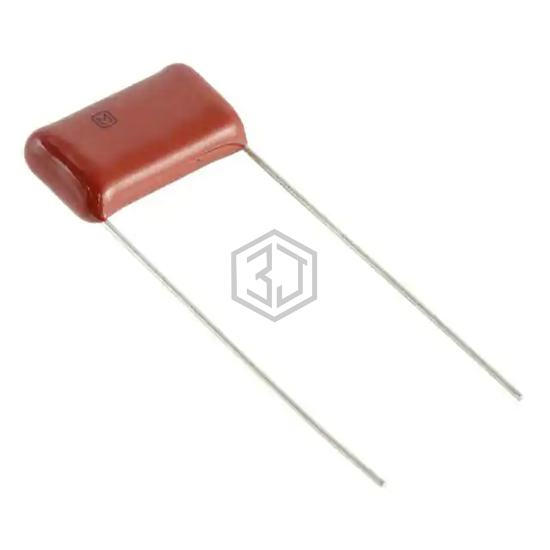

CAP FILM 0.056UF 10% 630VDC RAD
ECQ-E6563KF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.056UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 3,916
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.056 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.213" W (18.50mm x 5.40mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R75PI256050H3J | KEMET | CAP FILM 0.056UF 5% 630VDC RAD | 100% | View |
| ECQ-E6563JF3 | Panasonic Electronic Components | CAP FILM 0.056UF 5% 630VDC RAD | 100% | View |
| BFC2373GB563MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 630VDC RAD | 94% | View |
| MKP385E35612JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 1.25KVDC RAD | 82% | View |
| BFC247046563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 250VDC RAD | 81% | View |
| MKP385356200JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 2KVDC RADIAL | 70% | View |
Submit your RFQ for ECQ-E6563KF and get a quote within 24 hours.
