Panasonic Electronic Components

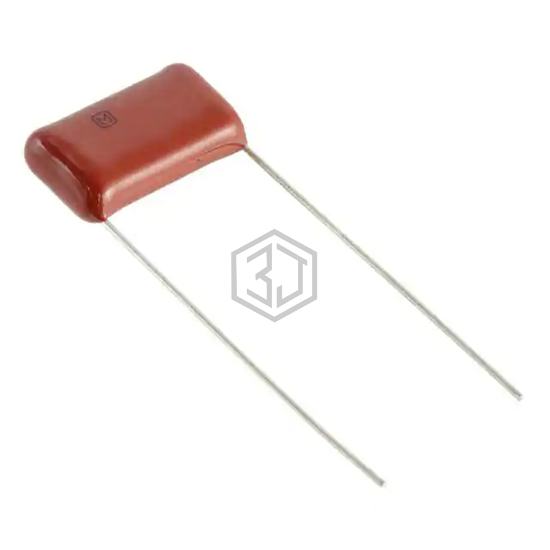

CAP FILM 0.056UF 5% 630VDC RAD
ECQ-E6563JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.056UF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 8,491
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.213" W (18.50mm x 5.40mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPPAC310V563K15S5 | SURGE | CAP FILM 0.056UF 310VAC RADIAL | 100% | View |
| MKP383356100JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 1KVDC RADIAL | 92% | View |
| MKP385E35640JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 400VDC RAD | 92% | View |
| DME2S56K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.056UF 10% 250VDC RAD | 84% | View |
| PHE450SD5560JR06L2 | KEMET | CAP FILM 0.056UF 5% 2KVDC RADIAL | 79% | View |
| MKP385356016JC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 160VDC RAD | 76% | View |
