Panasonic Electronic Components

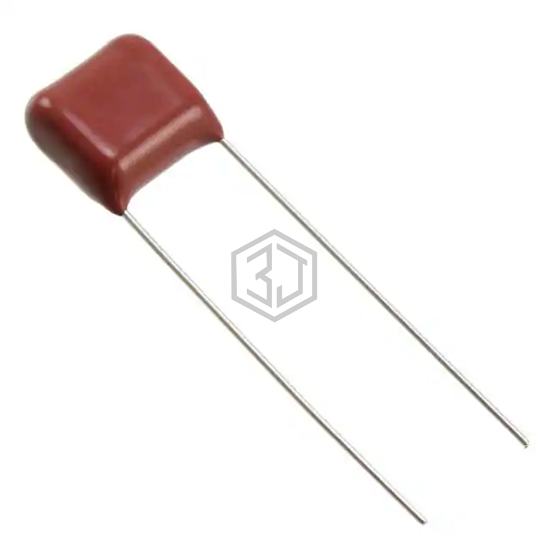

CAP FILM 0.047UF 10% 630VDC RAD
ECQ-E6473KFW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 3,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.256" W (12.00mm x 6.50mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R523F247050P0K | KEMET | CAP FILM 0.047UF 10% 630VDC RAD | 100% | View |
| R75LF24704000K | KEMET | CAP FILM 0.047UF 10% 560VDC RAD | 98% | View |
| F339X134733MFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 800VDC RAD | 96% | View |
| ECQ-E4473KFW | Panasonic Electronic Components | CAP FILM 0.047UF 10% 400VDC RAD | 92% | View |
| MKP383347025JD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 250VDC RAD | 84% | View |
| MKT1817347016F | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 100VDC RAD | 71% | View |
Submit your RFQ for ECQ-E6473KFW and get a quote within 24 hours.
