Panasonic Electronic Components
CAP FILM 0.39UF 10% 630VDC RAD

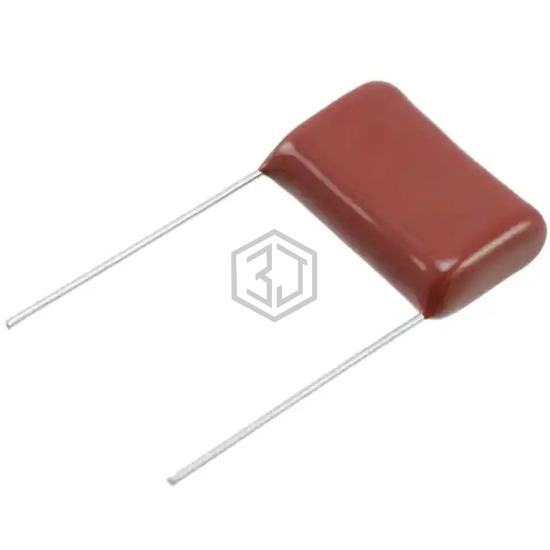

ECQ-E6394KFW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.39UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,731
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.39 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.335" W (26.00mm x 8.50mm) |
| Height - Seated (Max) | 0.902" (22.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC236866394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 630VDC RADIAL | 100% | View |
| B32932B3394K000 | EPCOS - TDK Electronics | CAP FILM 0.39UF 10% 500VDC RAD | 96% | View |
| F340Y243930KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 1KVDC RAD | 92% | View |
| BFC247954394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 400VDC RADIAL | 92% | View |
| MKP385439100JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 1KVDC RADIAL | 92% | View |
| ECQ-E2394JB3 | Panasonic Electronic Components | CAP FILM 0.39UF 5% 250VDC RADIAL | 84% | View |
Submit your RFQ for ECQ-E6394KFW and get a quote within 24 hours.
