Panasonic Electronic Components

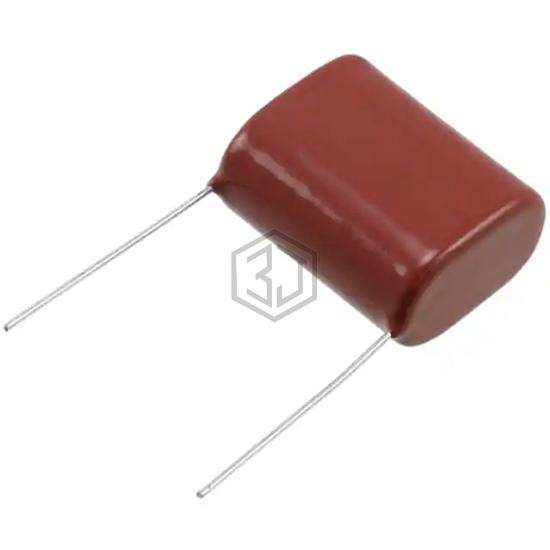

CAP FILM 2.2UF 10% 630VDC RADIAL
ECQ-E6225KFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 10% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 1,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.768" W (31.00mm x 19.50mm) |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP383522063JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 100% | View |
| MKP383522063JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 100% | View |
| B32673P5225K000 | EPCOS - TDK Electronics | CAP FILM 2.2UF 10% 520VDC RADIAL | 97% | View |
| F340X152248MPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 20% 800VDC RADIAL | 96% | View |
| MKP385522085JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 850VDC RADIAL | 95% | View |
| MKP385522125JPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 1.25KVDC RAD | 88% | View |
Submit your RFQ for ECQ-E6225KFB and get a quote within 24 hours.
