Panasonic Electronic Components

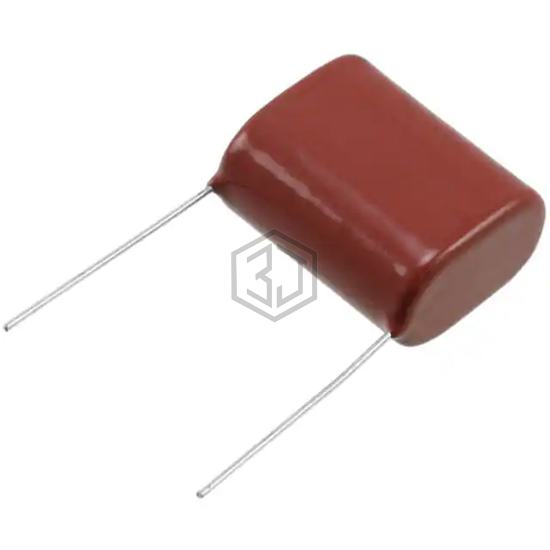

CAP FILM 2.2UF 5% 630VDC RADIAL
ECQ-E6225JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 5,353
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.768" W (31.00mm x 19.50mm) |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 72419-22 | Iskra | KNB1560 2U2 10% 275V L30 R27.5 | 100% | View |
| F339MX252231MI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 20% 630VDC RADIAL | 100% | View |
| F339MX252231KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 10% 630VDC RADIAL | 100% | View |
| F339MX252231MIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 20% 630VDC RADIAL | 100% | View |
| F1778522K2KBT0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 10% 630VDC RADIAL | 100% | View |
| F339MX252231JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 100% | View |
Submit your RFQ for ECQ-E6225JFB and get a quote within 24 hours.
