Panasonic Electronic Components
CAP FILM 0.18UF 10% 630VDC RAD

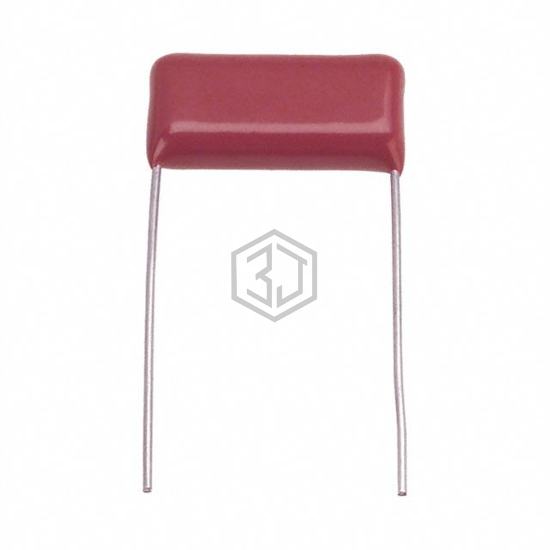

ECQ-E6184KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.18UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 630V, package / case Radial.
In Stock: 3,773
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.18 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.354" W (24.00mm x 9.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.807" (20.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E6184KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E6184JF3 | Panasonic Electronic Components | CAP FILM 0.18UF 5% 630VDC RADIAL | 100% | View |
| BFC246840184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 10% 630VDC RAD | 100% | View |
| ECW-FD2J184JB | Panasonic Electronic Components | CAP FILM 0.18UF 5% 630VDC RADIAL | 100% | View |
| F340Y241830JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 1KVDC RAD | 92% | View |
| ECQ-E10184JFB | Panasonic Electronic Components | CAP FILM 0.18UF 5% 1KVDC RADIAL | 92% | View |
| BFC236849184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 250VDC RADIAL | 84% | View |
Submit your RFQ for ECQ-E6184KZ and get a quote within 24 hours.
