Panasonic Electronic Components

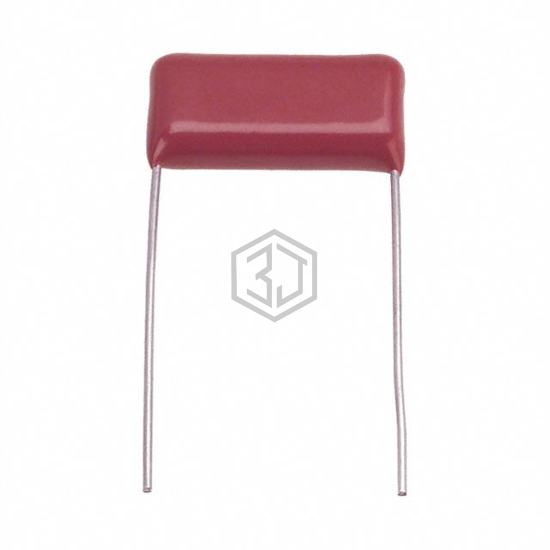

CAP FILM 0.15UF 10% 630VDC RAD
ECQ-E6154KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.15UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 630V, package / case Radial.
In Stock: 7,087
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.807" (20.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E6154KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPX154K27AL150B-18X12X6 | Trigon Components | CMPX-X2 FILM CAP 0.15UF 10% | 100% | View |
| 171154K400I-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.15UF 10% 400VDC RAD | 92% | View |
| 75665-22 | Iskra | KNB1540 U15 10% 440V L25 R27.5 | 92% | View |
| MKP1840415404M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 400VDC RADIAL | 92% | View |
| BFC2373EM154MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 250VDC RADIAL | 84% | View |
| BFC236742154 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 250VDC RADIAL | 84% | View |
Submit your RFQ for ECQ-E6154KZ and get a quote within 24 hours.
